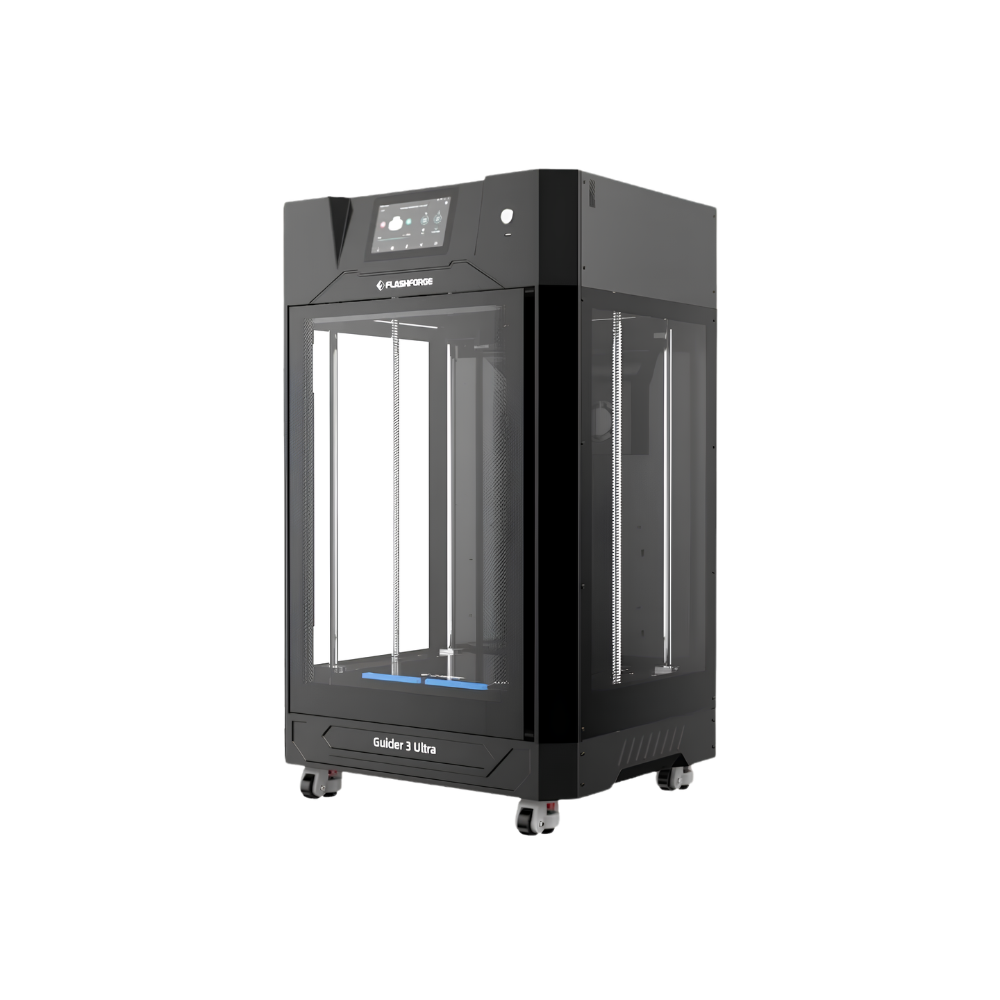

FlashForge Guider 3 Ultra 3D Printer

Commercial-Grade Speed, Precision & Reliability

The FlashForge Guider 3 Ultra is a professional-grade 3D printer designed for commercial additive manufacturing, demanding prototypes, large models, and long-duration print jobs. Powered by a CoreXY motion system, the Guider 3 Ultra combines high-speed printing, exceptional stability, high-fidelity results, and quiet operation in a robust all-in-one package. With print speeds of up to 500 mm/s, a large 330 × 330 × 600 mm build volume, high-temperature extrusion, built-in filament drying, HEPA 13 air filtration, and a flexible removable steel build plate, the Guider 3 Ultra is engineered for efficient and reliable professional 3D printing.

Key Features

High-Speed CoreXY Printing

The CoreXY motion system provides fast and precise movement while maintaining stability during demanding print jobs. The Guider 3 Ultra supports print speeds of up to 500 mm/s, making it suitable for rapid prototyping and production workflows.

Large Build Volume

With a spacious 330 × 330 × 600 mm build volume, the Guider 3 Ultra can produce large-format models and tall components without requiring them to be divided into multiple parts. The large build area is ideal for:

• Large prototypes
• Functional components
• Industrial models
• Architectural models
• Long-duration production jobs
• Batch printing

Extremely Stable Z-Axis

The printer uses sturdy Z-axis guides and ball screws to provide reliable vertical movement and increased stability. This design is particularly beneficial when printing:

• Large models
• Tall objects
• High-detail parts
• Long-duration prints

High-Temperature Extrusion

The Guider 3 Ultra is equipped with a high-temperature extrusion system capable of reaching up to 350°C. This allows it to work with a broad range of engineering and high-performance materials.

Built-In Filament Drying Chamber

The integrated filament drying system helps maintain suitable material conditions during printing. Proper filament storage and drying can help reduce moisture-related printing problems and improve extrusion consistency.

HEPA 13 Air Filtration

The built-in HEPA 13 air filtration system helps filter airborne particles generated during the printing process, contributing to a cleaner operating environment.

Flexible & Removable Steel Build Plate

The flexible, removable steel build plate provides convenient print removal while offering a stable printing surface. Its flexible design makes it easier to release completed models without excessive scraping or force.

Quick-Release Nozzle

The quick-release nozzle system simplifies maintenance and nozzle replacement, helping reduce downtime when changing or servicing the extrusion system.

Quiet Printing

Despite its high-speed capabilities, the Guider 3 Ultra is designed for quiet operation, making it suitable for professional environments where reduced noise is desirable.

Broad Material Compatibility

The printer supports a wide range of materials, from standard PLA and PETG to advanced fiber-reinforced engineering filaments. Supported materials include:

• PA-CF
• PA-GF
• PETG-CF
• PETG-GF
• PA
• PC
• ABS
• ASA
• HIPS
• PLA-CF
• PETG
• PLA

Specifications

Printing

Specification	Details
Printing Precision	±0.15 mm or 0.002 mm/mm
Position Precision – X/Y	0.011 mm
Position Precision – Z	0.0025 mm
Layer Thickness	0.05–0.4 mm
Build Volume	330 × 330 × 600 mm
Standard Nozzle Diameter	0.4 mm
Optional Nozzle Diameters	0.6 mm / 0.8 mm
Maximum Extruder Temperature	350°C (608°F)
Maximum Heated Build Plate Temperature	110°C (230°F)
Filament Diameter	1.75 mm
Print Speed	10–500 mm/s
Number of Extruders	One

Supported Materials

Material	Support
PLA	✓
PETG	✓
ABS	✓
ASA	✓
PC	✓
PA	✓
HIPS	✓
PLA-CF	✓
PA-CF	✓
PA-GF	✓
PETG-CF	✓
PETG-GF	✓

Mechanical & Dimensions

Specification	Details
Motion System	CoreXY
Number of Extruders	1
Printer Dimensions	496 × 436 × 696 mm
Printer Dimensions (inches)	19.5 × 17 × 27 in
Packaging Dimensions	585 × 530 × 760 mm
Packaging Dimensions (inches)	23 × 21 × 30 in
Net Weight	27 kg (60 lb)

Display & Controls

Specification	Details
Display	4.3-inch HD Touch Screen

Connectivity

Connection	Details
USB Cable	Supported
USB Stick	Supported
Wi-Fi	Supported
Ethernet	Supported

Electrical Requirements

Specification	Details
Power Supply	AC 100–240 V / DC 24 V
Current	20.8 A
Rated Power	650 W

Certification

• CE
• FCC
• RoHS

Software

Specification	Details
Primary Software	FlashPrint
Compatible Slicing Software	Slic3r, Skeinforge, Cura*
Simplify3D	Coming Soon*

Cura requires manual setup/configuration.

File Compatibility

Input File Formats

• STL
• 3MF
• OBJ
• FPP
• BMP
• PNG
• JPEG

Output File Formats

• GX
• G
• G-code

Why Choose the FlashForge Guider 3 Ultra?

The FlashForge Guider 3 Ultra is built for users who require a combination of large-format printing, high speed, precision, material versatility, and reliable long-duration operation. Its CoreXY architecture, 500 mm/s maximum print speed, 330 × 330 × 600 mm build volume, 350°C high-temperature extruder, stable Z-axis system, built-in filament drying chamber, HEPA 13 filtration, and quick-release nozzle make it a powerful choice for commercial and professional applications. Whether you're producing large prototypes, engineering components, functional parts, or high-volume print jobs, the Guider 3 Ultra provides the performance and reliability needed for demanding additive manufacturing workflows.
